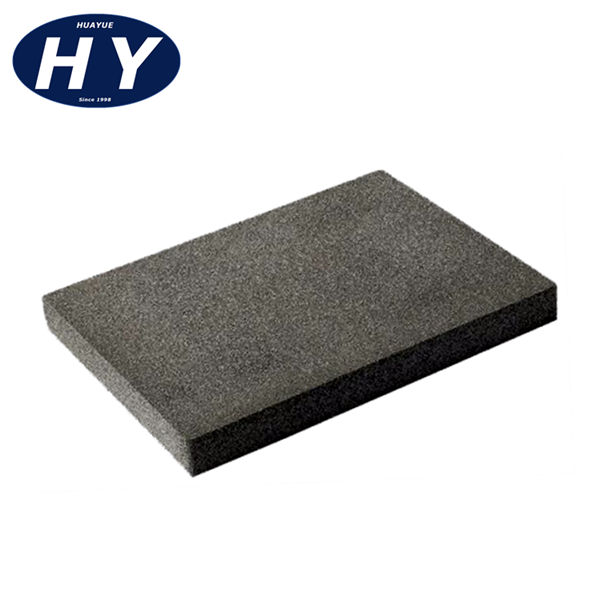

HUAYUE® High Performance Cellular Glass is mainly made from glass powder, which makes cellular glass totally environmental friendly and recyclable. The whole production system includes raw material batching, glass melting, ball mill mixing, high temperature foaming, continuous cooling, and automatic finishing.
| Density | 160kg/m3 |
|---|---|
| Length | 620mm |
| Width | 500mm |
| Thickness | 30-150mm |
HUAYUE® High Performance Cellular Glass CGN160 is mainly made from glass powder, which makes cellular glass totally environmental friendly and recyclable. The whole production system includes raw material batching, glass melting, ball mill mixing, high temperature foaming, continuous cooling, and automatic finishing. Cellular Glass is used for building insulation, fire proofing and water proofing, and it can serve as long as the building exists without any deterioration of its characteristics. It can be used for a wide range, including the roof and external wall of buildings, and cryogenic projects, high-temperature and corrosion projects, etc.
-Low density, low thermal conductivity but high compressive strength.
-No water absorption, no permeability.
-Low thermal expansion coefficient, good dimensional stability, no deformation, no crack.
-Fire resistant, non-combustible and corrosion resistant.
-Excellent acoustical coefficient.
-No mildew, no rat eating, and preventing from insect pest or microorganism.
-Applicable for cryogenic, constant and high temperature.
-Convenient for fabrication and installation.
-No-aging, no deterioration.
-Environmentally friendly and recyclable.
| Thickness
(mm) |
Width
(mm) |
Length
(mm) |
| 30-200 | 620 | 500 |
| 600 | 600 |
Note: Customized products are available on consult.
Pipe shell, Curved plate and blocks are also available.
| Physical Property | Unit | CGN160 | Testing Method | |
| Density | kg/m3 | 160±10% | GB/T 5486 | |
| Thermal Conductivity | Avg. Value | W/(m·K)
(10℃) |
0.056 | GB/T 10294/
GB/T 10295 |
| Highest Single Value | 0.059 | |||
| Compressive Strength | Avg. Value | MPa | 0.70 | JC/T 647 Appendix A |
| Lowest Single Value | 0.50 | |||
| Bending Strength | Mpa | ≥ 0.50 | JC/T 647 Appendix B | |
| Water Vapor Permeability | ng/(pa.m.s) | ≤ 0.05 | GB/T 17146-1997 Dry Method | |
| Water Absorption by Vol | Vol% | ≤ 0.50 | JC/T 647 Appendix C | |
| Service Temp | ℃ | -268～+480 | ||
| Linear Thermal Expansion Coefficient | 1/℃ | 9×10-6 | GB/T 7320 | |
| Combustibility | Non-combustible (Class A1) | |||
| Component | Pure Glass, Free from Asbestos | |||
| Color | Black | |||
HUAYUE® High Performance Cellular Glass CGN160 is the ideal insulation material for the building industry, generally used in flat roof, roof planting, storage parking roof, slope roof, roof, exterior wall insulation system, meanwhile, generally used in Cooled & frozen building, Breweries, Milk industry, Tunnels, Swimming pools, Ice skating courts etc.
(1) Carton packing or hot shrink bag, and/or palletized (wrapped with film), special packing is available on request.
(2) Brand: HUAYUE INSULATION or Authorized OEM.
(3) During shipment, keep cartons tightly closed, keep stacks upright to protect from collision. If necessary, reinforcement can be applied.
(4) Store in weatherproofing, dry and ventilated environment, no more than 6 layers stack is preferred.
(1) Cellular Glass is fragile, shall be handled gently, avoid rolling or collision.
(2) Fix cellular glass segments by stainless steel band when applied in pipe/equipment insulation.
(3) Cut it with saw during application.
