Huayueflex® rubber foam thermal insulating materials are produced by foreign advanced technology and processing, automated production lines, with excellent nitrile rubber, polyvinyl chloride as the main raw materials and other high quality accessories, made by foaming flexible insulation materials via special processes.
| Length | 4-30m |
|---|---|
| Width | 1-1.5m |
| Thickness | 6-50mm |
| Color | Black |
| Density | 40-50kg/m3 |
| Facing | Self-adhesive Kraft |

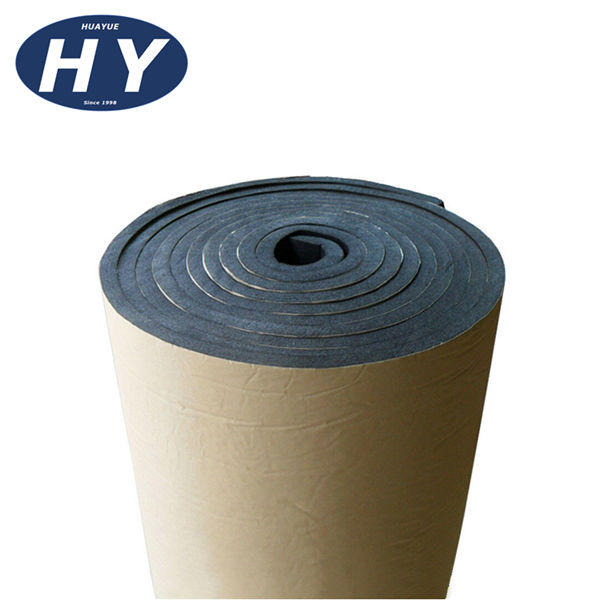

Overview of HUAYUEFLEX TM Foam Rubber Insulation Sheets / Rolls:
HUAYUEFLEX TM rubber insulation sheets/rolls are soft heat-insulating, heat-preservation, and energy conservation materials made with advanced technology at home and abroad and advanced full-automatic continuous production line imported from abroad, and through development and improvement by ourselves, using acrylonitrile-butadiene rubber and polyvinyl chloride (NBR, PVC) with best performance as main raw materials and other high quality auxiliary materials through foaming and so on special procedure.
Advantages of HUAYUEFLEX TM Foam Rubber Insulation Sheets / Rolls:
HUAYUEFLEX TM Foam Rubber Insulation Sheets / Rolls Packing:
Packed in PE bags.
We can make OEM packing.
Applications of HUAYUEFLEX TM Foam Rubber Insulation Sheets / Rolls:
For condensation prevention and energy loss limitation where pipes and ducts, chillers and air conditioning equipment are required.
Efficiently reduces heat flow on hot systems, duct work, large piping, tanks and fittings.
Product Specifications of HUAYUEFLEX TM Foam Rubber Insulation Sheets / Rolls:
|
Thickness(mm) |
3 | 6 | 9 | 15 | 18 | 20 | 25 | 28 | 30 |
| Length (M) | 8/10 | 8/10 | 8/10 | 8/10 | 8/10 | 8/10 | 8/10 | 8/10 |
8/10 |
Technical Parameters of HUAYUEFLEX TM Foam Rubber Insulation Sheets / Rolls:
| Property | Performance | Standard |
| Material | NBR/PVC | – |
| Cell Structure | Closed Cell | – |
| Temperature limits (°C) | -40 °C to +120 °C | – |
| Density Range | 40kg/m3 -7Okg/m3 | ASTM D1667 |
| Thermal Conductivity ( 40˚C) | 0.038 W/mK | ASTM C518 |
| Water Absorption | 2.98 | ASTM D 3575-91 |
| Water Vapour Permeability perm/Max |
0.19 Perm – in | ASTM E 96-95 |
| Resistance to Ozone | Excellent | ASTM D 1149 |
| Flammability | Self Extinguishing | ASTM D 635-91 |
| Fire Performance | Class 1 | ASTM E-84 |
| Copper corrosion | Negligible | ASTM C665 |
| Limited Oxygen Index | 32% | ASTM D 2863 – 77 |
| Fungi Resistance | Passed | ASTM G21/C1338 |
| Flexibility | Excellent | ASTM D 1056-85 |
